    60W 12V Constant Voltage Led Driver 2500mA With TUV Approval

    Ask Lasest Price
    Brand Name : Letaron
    Model Number : AED60-1500ILS
    Certification : CE/TUV-GS
    Price : USD 8.9-9.1 / piece
    Payment Terms : T/T
    Supply Ability : 600000000 Piece/Pieces per Year
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    60W 12V Constant Voltage Led Driver 2500mA With TUV Approval

    60W-12V constant voltage LED driver with TUV CE SAA CCC Approval

    1. Safety & EMC standard:

    EN61347-1 EN61347-2-13;EN55015, EN61000-3-2/3 , EN61547.

    2. Electrical Performance :

    The Supply shall operate over the voltage ranges as follows


    Rated input voltage100-240VAC
    Operating range90-264VAC
    Rated input frequency50/60Hz±3Hz
    Power consumption (no loading)≤0.5W
    Primary current protectionAn adequate internal fuse on the AC input line is provide.
    OUTPUT REQUIREMENTS:
    Max dc output voltage24V
    Rating load current2500mA
    Rating output power60W
    Short-circuit protectionThe driver shall not damage and with auto recovery function by short the DC output to Ground
    Over-voltage protectionThe output voltage shall be clamped by internal protection IC

    3. HI-POT Test:

    Between live parts and the enclosure:

    – for basic insulation

    – for reinforced insulation

    Between input circuits and output circuits

    Between metal parts of class II controlgear which are separated from live parts by basic insulation only and the enclosure

    Between metal foil in contact with the inner and outer surface of enclosures of insulating material

    Shall Withstand Without Breakdown:

    3-1. AC 3750 V 60 sec between input (AC short)to output(DC short)(Cut-off current:10mA);

    3-2. AC 3750 V 60 sec between input(AC short) to crust(Cut-off current:10mA);

    3-3. AC 1000 V 60sec between output(DC short) to crust(Cut-off current:10mA);

    3-4. Leakage Current:

    The leakage current shall be less than 3mA for Class II when product is operated maximum

    input voltage and maximum load.


    4. Isolation Resistance:

    4-1. Input to output ≥5MΩ , DC 500V;

    4-2. Input to crust≥5MΩ , DC 500V;


    5.Environment:

    working temperature of 0°C~45°C , 10%~90%RH (without dew point);

    Storage temperature: -20°C~85°C , 10%~90%RH (without dew point);


    6. Structure:

    Cooling in natural way..


    7. Aging Test:

    The product operate continuously for four hours at a rated load.


    8. Humidity Test:

    After exposed to 45±2 , 90-95RH for 48 hours, and then put it into

    normal ambient condition treated for 30 minutes.

    The test result must be satisfied with item 3. & item 4.


    9. Temperature Test:(Ta=45 MAX)

    A component part temperature shall not exceed the manufacturer’s maximum of the thermal

    rating and the maximum temperature rise not exceed 80 .

    10. Instruction:

    10-1. Turn off the power connection before installation.

    10-2. Indoor use only.

    10-3. Load of the secondary shall not exceed the rated power.

    10-4. Installation shall be done by qualified technician.

    10-5. Make sure all the cables connected correctly before turn on the power.

    10-6.Maximum ambient temperature 45℃


    11. Externality figure and name plate:

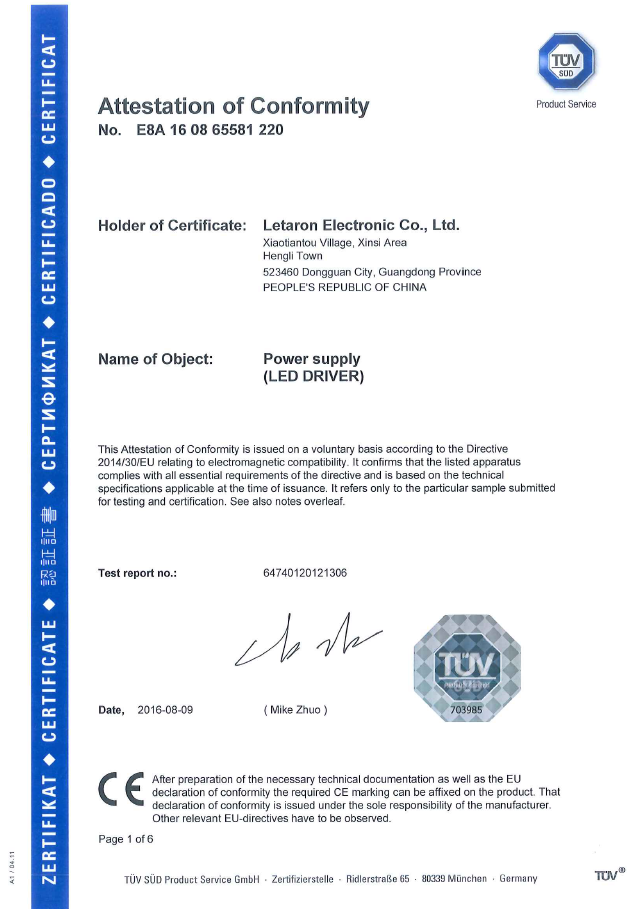

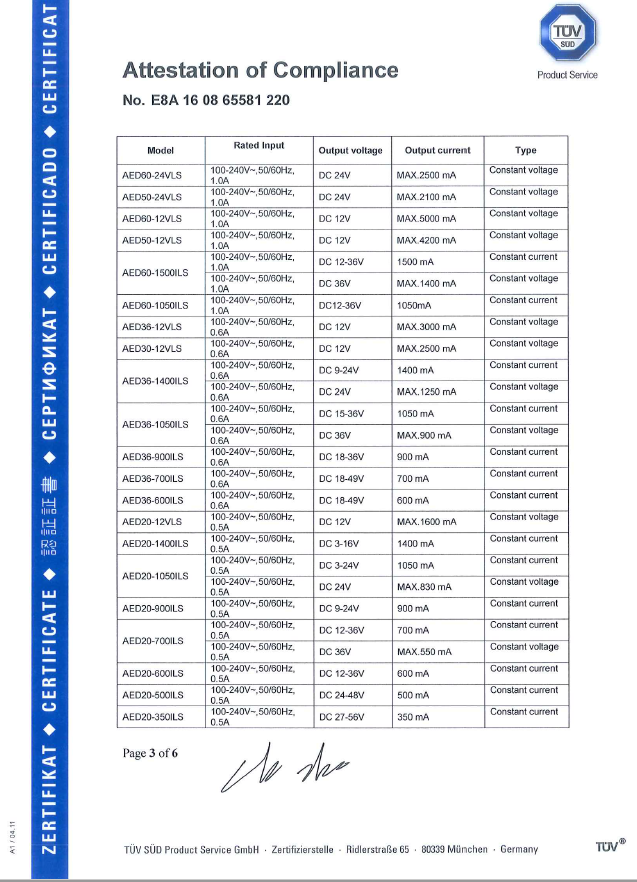

    12. Certificate: CE/TUV
